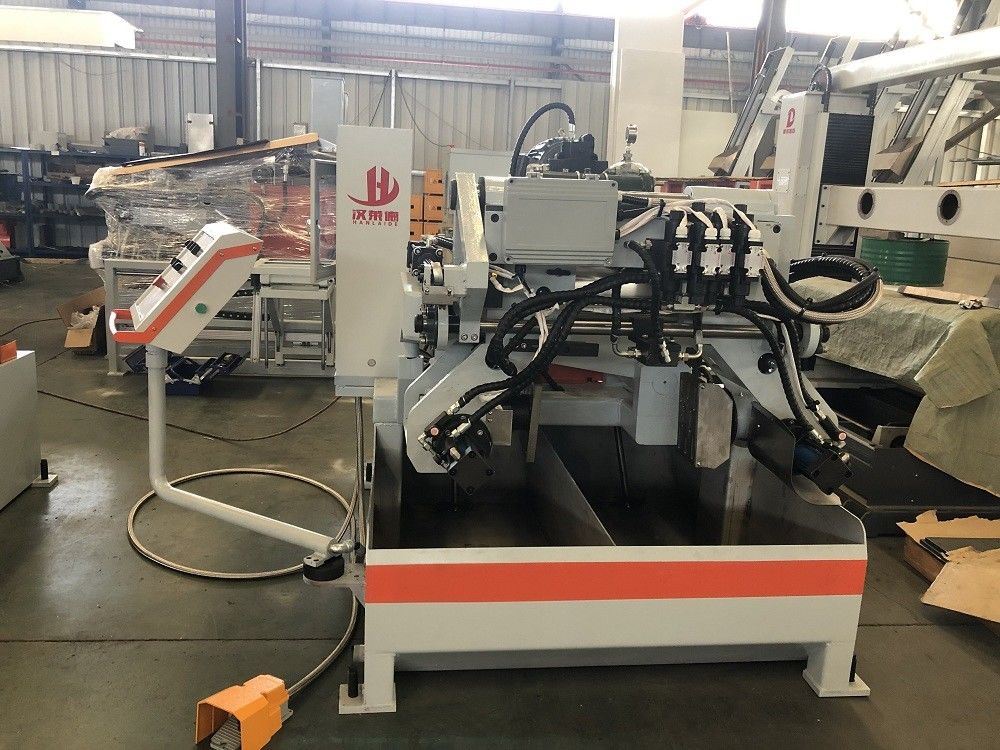

|Name:||Brass Die Casting Machine||Technology:||Gravity Die Casting Technology|
|Usage:||Foundry Pieces Production||Raw Material:||Brass Copper Zinc Aluminum Steel Iron Alloy|
1) the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.
2) it is suitable for gravity die casting of brass and ferroalloy.
3) it can be direct casting, side casting, twice casting and mixed casting.
4) it is possible to individually adjust the cooling time of the die.
5) it facilitates the decomposition, combination and cleaning of dies.
6) It has two functions of manual and automatic circulation, the counter can be preset, to record the output of each shift.
7) there is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
8) the machine can store the die casting operation program and set the password accordingly.
|1||Max. Die size||Φ450mm|
|2||Max. Die working distance||450mm|
|3||Max. Die Weight||130kg|
|4||Max. Clamping distance||≦250mm|
|5||Hydraulic Motor||5Hp,6 degree|
|7||Side Casting Angle||0°～90°|
|8||Direct Casting Angle||0°～110°|
|9||Stirring motor||0.75kw,6 degree ×2|
|11||Hydraulic oil volume||163L|
