Product Details:
Payment & Shipping Terms:
|
| Voltage: | 380V/50Hz (others Are Available) | Condition: | New |
|---|---|---|---|
| Weight: | 6000KG | Dimension(l*w*h): | 5800x3400x2900 |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training | Application: | Polishing |
| Power(w): | 47KW | Cnc Or Not: | CNC |
| Warranty: | 1 Year | Control System: | PLC |
| Motor: | Servo Motor |

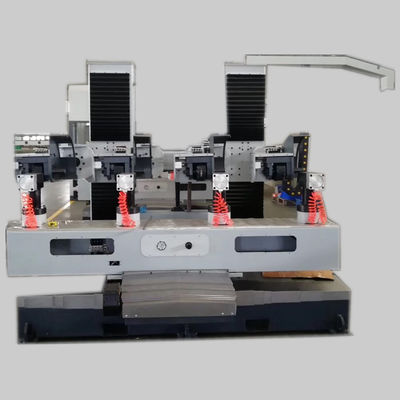

High Efficiency CNC Automatic Metal Polishing Mahicne Easy - Operation
Quality Assurance
Quality is always our top priority. We are familiar with the international standards & regulations. All our designs comply, meet or even exceed ISO9001:2008 standards. We use top grade components and we perform extensive testing to make sure our equipment's quality completely satisfy our customers.
Features
1). As a special 6-axis four-station polishing robot, this machine has six degrees of freedom, four stations working simultaneously, flexible and efficient, is widely used to polish products of sanitary, gating, auto parts, etc.
2). Adopt the advanced motion control technology to its control system, ensuring the stable performance and accurate control.
3). Programming method: teaching programming, which uses manual mode to simulate manual polishing and record it. Afterwards, the machine will polish automatically in accordance with the recorded track.
4). Auto compensation of polishing wheel: the system can detect when the torsion gets weakened after polishing cloth wheels being worn, and then compensate automatically from all directions.
5). Linear speed compensation: the system will automatically increase rotating speed to make up for linear speed m when outer diameter of cloth wheel gets smaller.
6). Full-digital controlled, and programs can be memorized for use at anytime.
7). It is easy to set functions and parameters through touch panel. Also the touch panel can show defect codes, facilitating inspection.
| II:Main technical parameters | |||
| # | Item | Parameter | Remarks |
| 1 | Size | 3000×3160×2772(L×W×H) | |
| 2 | Power | 16.25KW | |
| 3 | Rated Voltage | 380V 50Hz | |
| 4 | Max. Polishing Mop Diameter | 600mm | |
| 5 | Min. Polishing Mop Diameter | 400mm | |
| 6 | X Axis Travel | 1100 | |
| 7 | Y Axis Travel | 900 | |
| 8 | Z Axis Travel | 700 | |
| 9 | U Axis Travel | ±60° | |
| 10 | V Axis Travel | ±360° | |
| 11 | Operating Voltage | 380V | |
| Table Size (LxW) | 2740*375mm | ||
| Height from Ground (without fixture) | 880mm | ||
| Jig Rotating Speed | 20RPM | ||
| Station Size/Working Dia (max) | 350mm | ||
| Station Rotational speed Motor | 1500rpm | ||
| III | BASIC EQUIPMENT | ||
| # | Item | Brand | Remark |
| 1 | Motion control system | PROMAX Italy | |
| 2 | Servo motor | PROMAX Italy | |
| 3 | Variable frequency compensation system+Control card | AELTA | |
| 4 | Cloth wheel motor spindle | SIEMENS | |
| 5 | Main low voltage electrical | SCHNEIDER | |
| 6 | Linear guide rail and screw | HIWIN | |
| 7 | Reduction box | Rossi Italy | |
| 8 | Bearing | NSK | |
| 9 | Steering gear of fixture | TAIWAN | |
| 10 | Components clamping | Penumatic | |
| 11 | Table Type | Movable - table moving by the screw rod/ball screw. Driven by servo motor | |
