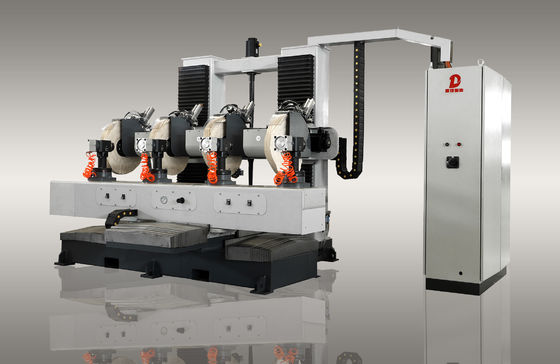

Professional Metal Polishing Machine , High Efficiency Tube Polishing Equipment

Good quality Automatic Buffing Machine for sales
Good quality Automatic Buffing Machine for sales
I'm Online Chat Now

Professional Metal Polishing Machine , High Efficiency Tube Polishing Equipment

China Professional Metal Polishing Machine , High Efficiency Tube Polishing Equipment supplier
Professional Metal Polishing Machine , High Efficiency Tube Polishing Equipment supplier

Large Image :  Professional Metal Polishing Machine , High Efficiency Tube Polishing Equipment

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: NC-62/64

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wood
Delivery Time: 2weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 units/per month
Contact Now
Detailed Product Description
Polishing Wheel Size: 400mm-600mm After-sales Service: Overseas Third-party Support Available
Dimensions: 6700*3400*3000mm Condition: New
Name: Wheel Polishing Machine Warranty: 1Year

metal steel pipe Metal polishing Equip finishing machine wheeled polishing machine Tube Polish Equipment







Main technical parameters​



Size:3000×3160×2772(L×W×H)

Power:16.25KW

Rated Voltage:380V 50Hz

Max. Polishing Mop Diameter:600mm

Min. Polishing Mop Diameter:400mm

X Axis Travel:1100

Y Axis Travel:900

Z Axis Travel:700

U Axis Travel:±60°

V Axis Travel:±360°

Operating Voltage :380V



Feature:



1. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency. Widely used in sanitary ware, door control, auto parts field products polishing

2. With Italy advanced control system for high precision of control and high stability of move technology.

3. Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.

4. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction

5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

6. Solid polishing wax, to set up the wax spraying cycle time, frequency.

Select fixed wax and liquid wax according to product features

7. Full digital control, Can store 50 programs

polishing program parameters can be saved and adjusted at any time.

8. CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.



Advantages Of Company

1) Most competitive price and quality.

2) Auto working, easy operation, save labour.

3) Short delivery time.

4) Import and Export License.

5) After-sales service:Engineers available to serve overseas and Instant service on line.
