Low Pressure Die Casting Machine For Brass Alloy / Zinc Alloy Products

Custom Low Pressure Die Casting Machine Silvery Grey Color For Brass Alloy / Zinc Alloy

Quality Assurance

Quality is always our top priority. We are familiar with the international standards & regulations. All our designs comply, meet or even exceed ISO9001:2008 standards. We use top grade components and we perform extensive testing to make sure our equipment's quality completely satisfy our customers.

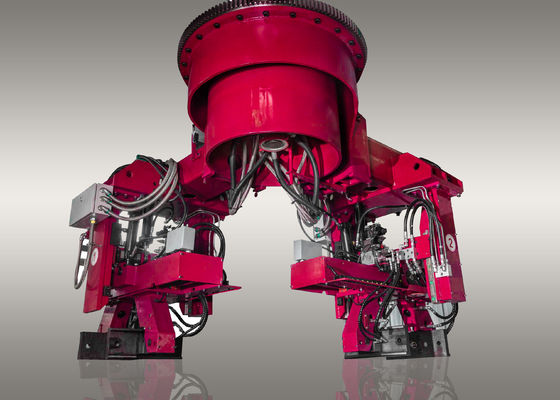

To fulfill the different capacity requirement of customers, we have 1-manipulator and 2-manipulators models for customer options.

Advanages:

1. High quality casting and high-precision repeatability , automated casting with servo motor driving, linear guiding rail system;

2. High capacity ranges 400~450 castings per shift (8hrs);

3.Quick die change flange, 5 mins by munually ;

4. Furnace heating method: gas burner is standard and elctricity for option;

5. Max. die diemension 550*400mm;

6. Whole set machine cooled by cooling water for a efficiency cooling, highly improve inductors service life;

7. Zinc Oxide dust cleaning unit for furnace cleaning;

8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;

9 .Cost-efficient production ( reduced melting loss,multiple die,one-man operation,increased yield);

10. Humanization of the work station (ergonomic design of the work station,minimizing of heat,noise and danger of accident)

The LPDC equipment consisting of main components: casting device, induction furnace, receiving car, graphite bath, die cleaning device,crane, manipulators, hydraulic and drives system, pneumatic system, riser tube heating system and control system etc.

Click the link to view video:

https://www.youtube.com/watch?v=zmWTnfFq-mM
