Product Details:
Payment & Shipping Terms:
|
| Name: | Full Automatic Foundry Machine | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service: | Field Installation, Commissioning And Training | Hydraulic Lube: | 163 L |
| Hydraulic Pressure: | 40 - 60 KPa | Application: | Hardware,valves,household Appliances,auto Parts Ect. |

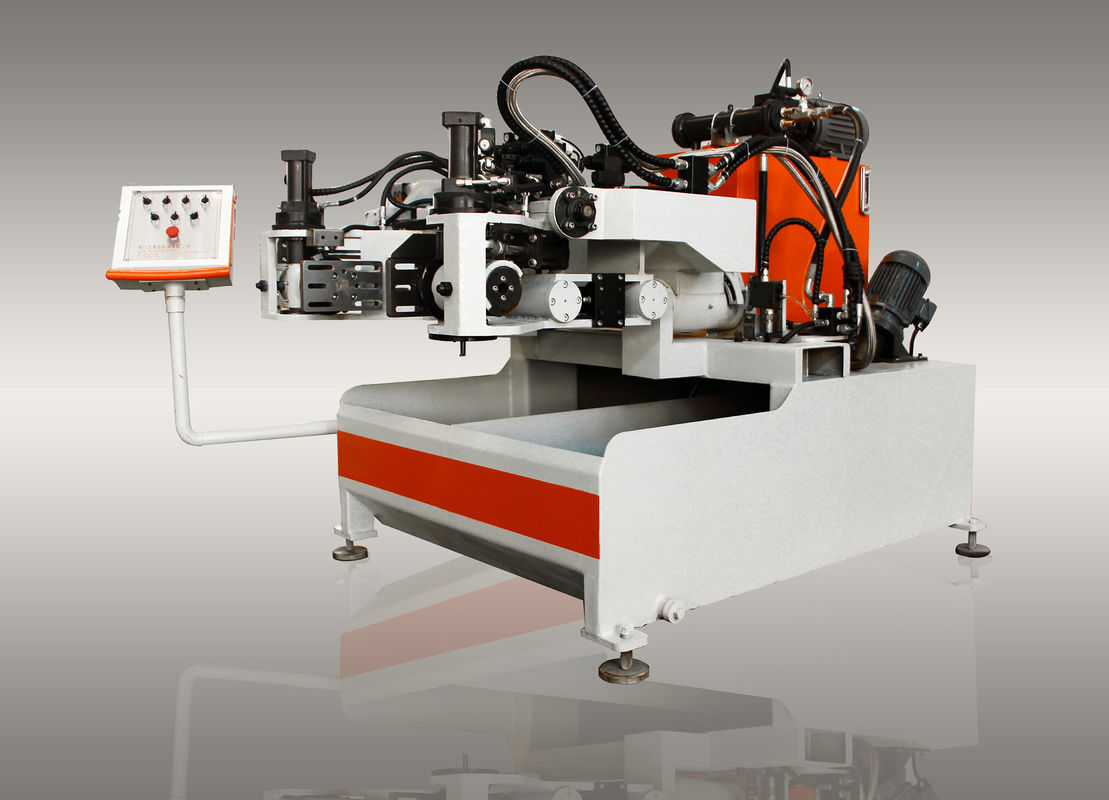

Full Automatic Die Casting Machine , Mini Brass Die Casting Machine For Sanitary Ware
| Biggest Size of The Mould | Φ 550 mm |
| Heaviest Weight of The Mould | 150 kg |
| Largest Merger Distance | ≤ 280 mm |
| Hydraulic Pressure | 40 - 60 kPa |
| Angle of Lateral Casting | 0° - 90° |
| Frontal Casting Angle | 0° - 110° |
| Hydraulic Lube | 165 L |
| Net Weight of The Whole Machine | 2000 kg |
|
Size of Appearance of Machine ( L * W * H ) |
2350 × 2100 × 1860 mm |
| Installing Top Core Available | Itinerary of Top Core 20 mm |
| Total Power | 5.5 kw |
This machine is suitable for the production of copper, zinc, aluminum, steel, iron ore and alloy, ferrous metal and non-ferrous metal casting pipe fittings, hardware, sanitary ware, auto parts.
1. The circuits are controlled by PLC, touch screen is used for data setting, and all the electrical components are used
Imported from Japan, hydraulic components are also imported from abroad.
2. Suitable for gravity casting with brass and ferroalloy.
3. Front casting,lateral casting and secondary casting are optional.
4 .The individual cooling time of the model is adjustable.
5. It is convenient to disassemble, assemble and clean the model.
6. There are two functions of manual circulation and automatic circulation.Add counters and presets.Arrange the counter to record the part number of production on duty.
7. The adjustment range of the model is defined to facilitate and reduce the use of different models.Physical dimensions outside the model.
8. This casting machine can store 100 sets of mold casting operation procedures, you can set up password by yourself .
Click the link to view video:
https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14
