Product Details:
Payment & Shipping Terms:
|
| Voltage: | 380V/50HZ | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Weight: | 6000kg |
| Dimensions(l*w*h): | 4000x4 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation |
| Warranty: | 1 Year |

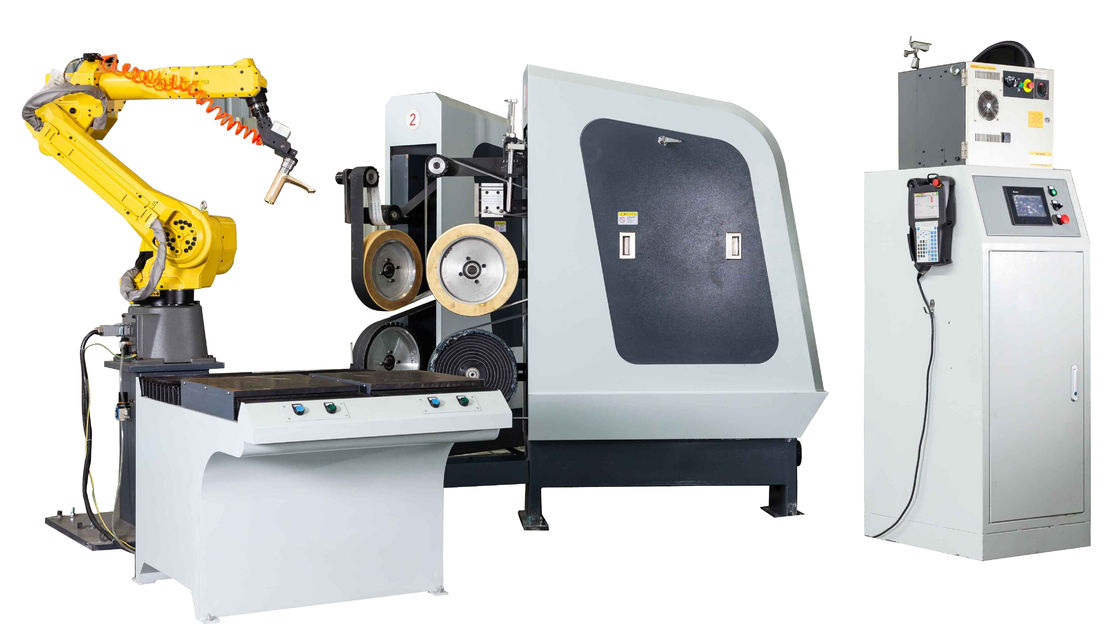

Faucets Industrial Full Automatic Robot Grinding Machine With 2 Robot Cell
Applications:
The automatic polishing machines are born to replace the heavy-labor workmanship and improve quality stability, reduce production cost and for high yield benefits. Our machines have been offered to worldwidely in various industries:
1. faucets and sanitary fittings,
2. Locks and door knobs, plates and door handles,
3.kitchen ware and flatware, table ware, stainless steel sinks, dishes, Knives and cutlery,
4. stainless steel round tubes , squre bars, rectangular tube etc;
5. aluminum profiles;
6. automotive industry for wheels,
7. metal furniture parts;
8. valves and tools;
9. watch and jewelry;
10. medical implants;
11. musical instruments... more applicaitons availability are welcomed to consult us.
Equipment Introduction
| 1. The grinding system contains: 2 industrial robot cells; 4 grinding units; 2 loading stations and Control system. | ||||||||||||
| 2. The robot is FANUC, M-20iA model with grinding moduel program system. | ||||||||||||
| 3. Teach device pogramming system, with manually model to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program | ||||||||||||
| 4. Full digital control, polishing program parameters can be saved and adjusted at any time. | ||||||||||||
| 5. CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair. |
Technical Parameters:
| NO. | DESCRIPTION | HGM-A | HGM-B | |||||||||
| 1 | Robotic Cell | FANUC- M-20iA | FANUC-M-20iA | |||||||||
| 2 | Power(KW) | 10.5 | 10.5 | |||||||||
| 3 | Voltage (V) | 380 | 380 | |||||||||
| 4 | Grinding Belt Motor (KW) | 2*3.75KW | 2*3.75KW | |||||||||
| 5 | Grinding Belt Size (MM) | 3000 | 3000 | |||||||||
| 6 | Grinding Belt Qty. ( pieces) | 4 | 4 | |||||||||
| 7 | Loading Station | 2 | 2 | |||||||||
| 8 | Footprint (MM) | 3400*2900 | 3800*2700 | |||||||||
